Technical Spec'
Factory Model No. | 55A82FEVS(0002) |
Model No. | 55A8H, |
Series | A8H |
Front-cover Material/Color | Plastic/Dark Grey |
Back-cover Material/Color | Plastic/Black |
Frame Design/Material | Bezelless |
TV Type | OLED 4K Smart TV |
Panel Performance | |
Panel Type | OLED |
Anti-reflectant screen | No |
Panel Aspect Ratio | 16:9 |
Panel Response Time (ms) | 3 |
Screen Size (diagonal) | 55inch |
Screen Size (diagonal) CM | 138.8 |
Visible Screen Area (cm^2) | 8230.1 |
Max. Resolution | Ultra HD 3840×2160 |
Curvature Rate | - |
Angle of visibility | 178° |
Display Color Depth | 10bit |
TCON color depth | 10bit |
Wide Color Gamut | Yes |
Quantum Dot TechNology | No |
KSF | No |
Color gamut range (DCI-PC3) | > 95% |
Vsync Frequency | 120Hz |
Contrast | 150000:1 |
TV Brightness (nits)(Typical Value) | 135 |
TV Peak Brightness (nits) and Duration (s) | 800 |
Backlight techNology | OLED |
Local Dimming | No |
Local Dimming Zones | NA |
Black Level | NA |
3D techNology | No |
2D to 3D | No |
PCI( Picuture Criteria Index) | 2400 |
HDR10 | Yes |
HLG | Yes |
HDR10+ | Yes |
Dolby Vision | Yes |
Improving Engines | |
Processor | Quad Core/MT9900 |
Upscaling Ultra HD | Yes |
MEMC | Yes |
Decoder | HEVC (H.265),VP9,H.264,MPEG4, MPEG2,AV1 |
Game Mode Level | Game Mode Pro |
Game Mode(Input Lag) | Yes (<20ms) |
3D Digital Comb Filter | Yes |
MPEG Noise reduction | Yes |
Mosquito Noise reduction | Yes |
Picture | |
UHD Premium | Yes |
IMAX Enhanced | Yes |
Filmmaker mode | Yes |
Dolby Vision IQ | Yes |
HDR10+ Adaptive | Yes |
Freesync Premium | Yes |
Sound | |
Sound output power | 4*10W + 2*10W |
Sound TechNology | Dolby Atmos, DTS Virtual X |
NICAM / A2 Stereo | NICAM Stereo |
User Equalizer | Yes |
Sound - Special | Dolby MS12, Dolby Atmos |
AC-4 | Yes |
MPEG-H | No |
Convenience | |
Media Player | Yes (Video, Audio, Picture) |
Multi-Language OSD | 参考sheet Area List + PVR |
Hotel TV | Yes |
User Interface | VIDAA U6.0 |
Internet | |
Important Apps (all countries) | refer to APP sheet |
Country-specific apps | refer to APP sheet |
Web browser | Odin |
HbbTV | HbbTV 2.0.3 |
MHEG support | Yes (but only if Certification requires,e.g. Ziggo) |
Anyview Cast | Yes |
Anyview Stream | Yes (DMP,DMR) |
Smartphone app | Yes |
Airplay2 Support | TBD |
Voice Service Support | VIDAA Voice |
Mid-field Voice Support | Yes |
Reception and TV Features | |
Digital and Analog Tuner | DVB-T2/T/C/S2/S |
Twintuner | No |
LCN Support | Yes (Depending on location and operator) |
Teletext Support | Yes |
EPG | 8 days forward EPG, 7 days backwards EPG (UK Only) |
Parental Control | Yes |
PVR | 参考 , ref Area List + PVR |
Time Shift | 参考 , ref Area List + PVR |
Channel sorting | Build-in and exportable for PC edit (ChSort) |
Favorite channel list | 4 |

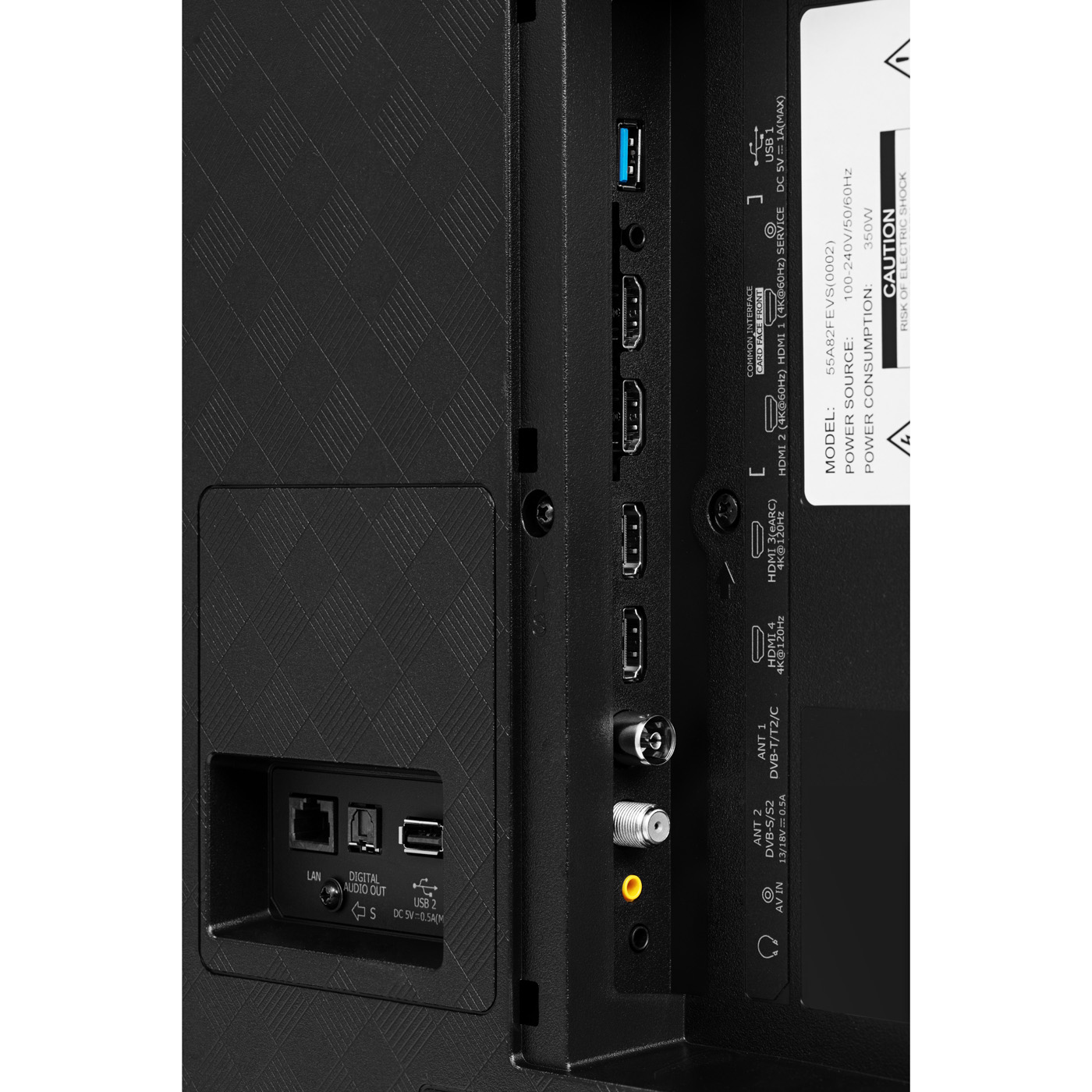

Connectivity | |
Common Interface (CI+) | Yes (CI+ ECP) |
HDMI1 | HDMI2.0 (ALLM) |
HDMI2 | HDMI2.0 (ALLM) |
HDMI3 | HDMI2.1 (eARC, ALLM, VRR (120Hz)) |
HDMI4 | HDMI2.1 (ALLM, VRR (120Hz)) |
USB (2.0) | 1 |
USB (3.0) | 1 |
S/PDIF Output | 1 |
Audio (L/R) Input | 1(mini) |
Headphone Output | 1 |
RF Tuner | 2 |
Composite (AV) Input | 1(mini) |
Component YPb(Cb)/Pr(Cr) Input | 0 |
SCART | 0 |
VGA Input | 0 |
PC Audio Input (3.5mm) | 0 |
Subwoofer | 0 |
Ethernet RJ45 port | Yes(100M) |
Wireless LAN adapter Support | Yes |
WiFi techNolegy | IEEE 802.11 a/b/g/n/ac/ax (2.4G 5G and 6G) |
Bluetooth Support and profiles | Yes (BT5.0) |
light sensor | Yes |
Eco & Power supply | |
Power Supply Voltage | AC100~240V |
Frequency | 50Hz/60Hz |
Energy Efficiency Class (SDR) | G |
Energy Efficiency Class (HDR) | G |
Network Standby Consumption | ≤2W |
Standby Consumption | ≤0.5W |
Power off Consumption | NA |
Power Consumption (Nameplate) | 350 |
Annual Consumption (Nameplate) | NA |
Power Consumption SDR (Energy Rating Label) | 84W |
Power Consumption HDR (Energy Rating Label) | 92W |
1000h Consumption SDR (Energy Rating Label) | 84kWh/1000h |
1000h Consumption HDR (Energy Rating Label) | 92kWh/1000h |
Luminance Ratio | >230 nit |
Mercury content | Yes -This television contains mercury only in certain parts or components ,in accordance with existing exemption clauses under the RoHS Directive. |
Lead content | Yes -This television contains lead only in certain parts or components ,in accordance with existing exemption clauses under the RoHS Directive. |
Weight & Dimensions | |
Weight incl. Packaging | 29.0 kg |
Product weight incl. Stand | 21.5kg |
Product weight excl. Stand | 18.1kg |
Weight of carton box | 4.4 kg |
Weight of plastic foam in package material | 1.9 kg |
Weight of plastic in package material | 0.1kg |
Weight of metal in package material | 0 |
Package (Horizontal/Vertical) | Vertical |
Packaging Dimension (LxDxH) | 1454×214×894 mm |
Product Dimension incl. Stand (LxDxH) | 1226×291×741mm |
Product Dimension excl. Stand (LxDxH) | 1226×68×712 mm |
Maximum distance between two stand(L)底座间最大尺寸 | NA |
Bezel width(Top/Left&right/Bottom) | 1.75/1.75/1.75mm |
Single stand | Yes |
Adjustable Stand | No |
Minimum distance between the stands | NA |
Cable Management | Yes |
Accessories | |
Stand Material / Color | Metal/Dark Gray |
Stand (LxW) | 566×291 mm |
VESA Wall Mount Compatible | 300×200 mm |
Second Remote Control (Model number) | No |
Remote Batteries | AA×2(Mid-field voice remote)/AAAx2(None mid-fileld voice remote) |
User Manual | Yes |
Quick start page | Yes |
Power cable | Yes |
Adapter | No |
Weight of packaging | |
Weight of packaging -paper, cardboard | 4.4kg |
Weight of packaging- EPS | 1.9kg |
Weight of packaging- foil PE | 0.1kg |
Weight of packaging- PVC | 0 |
Weight of packaging- plastic- other | 0.1kg |
Weight of packaging- wood | 0 |
Weight of packaging- metal | 0 |
Weight of packaging -paper | 0 |
Logistics & Warranty | |
堆码层数Number of packaging units | 3 |
整机装箱量Container Loading(40HQC) | 255 |
DMP formats | |
Container Format | AVI,MP4,MKV,TS,FLV OGG |
Video | .AVI,.MP4,.MOV,.MKV,.MPG,.MPEG,.VOB,.FLV,.WebM,.OGM |
Audio | .wma,.mp4,.FLAC,.MP2,.MP3 music(mp3 aac wma wav) |
Picture | .jpeg,.bmp,.PNG,.GIF |
Weight | 29 kg |
---|---|
Dimensions | 145.4 × 21.4 × 89.4 cm |
