Technical Spec'




Product
Factory model55A53FXVT
FactoryQingdao

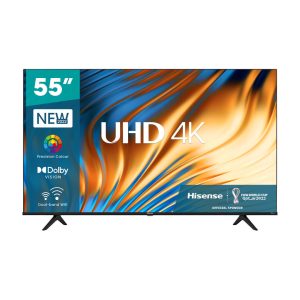

Description139cm (55" ) Direct LED Television
Document
Specifications form versionHA220120
CirculationRestricted, internal use only
StatusConfirmed
Revision number1
Date1/27/2022
Issued byAl
Image display
Panel manufacturerHisense
Panel modelLCM:HD550Y1U51-T0LA, Open Cell :T550QVN10.0
Active display area, horizontal dimension1209.6mm
Active display area, vertical dimension680.4mm
Screen size (rounded to nearest integer)139cm
Screen size (rounded to nearest integer)55inch
Display technologyLCD/ LED lit
Backlight sourceDirect LED
Resolution (Horiz x Vert)3840X2160
Screen curvature radius-
Colour depth8bit+FRC
Image refresh frequency60Hz
Smooth motion rate60
3D image-
Typical brightness of white300cd/m2
Native contrast ratio4000 : 1
Viewing Angle (Horiz / Vert)178/  178Degrees
Quantum dotNo
Wide colour gamutNo
KSF phosphorNo
UHD PremiumNo
Response Time8ms
Connectivity
RF- Radio frequency input1
AV input1
AV output0
USB interface type 3.0 (Qty / List….)0
USB interface type 2.0 (Qty / List ….)2/ USB2
Optical digital audio output (SPDIF)1
Earphone jack1
HDMI ports
HDMI inputs3
HDMI type 8K@60HzNo
HDMI type 4K@60Hz with HDCP version 2.2YES
HDMI 2.1  compliant inputNo
Enhanced Audio Return Channel ( eARC)No
CEC- Consumer Electronics Control via HDMIYes
Smart TV
Ethernet port (RJ45 connector)1
Wi-Fi  protocols IEEE 802.11 {b, g, n, ac, ad, ..}a, b, g, n, ac
Wi-Fi bands2.4/5.0GHz
DLNA complianceYes
Bluetooth / BT versionYes / 5.0
Anyview (Screen mirroring)Yes
Catch-up TV servicesIview,  SBS on Demand,  7 Plus, 9 Jumpin
(Tenplay available from Playsore)
UHD (4k) streamingYes
Installed Applications {List ……}Netflix/Youtube/Prime Video……
Freeview Plus - HbbTV 2.0Yes
Web browser [Chrome | Opera | Other]Odin
Digital TV reception
Television system (DVB-T / DVB-T2)Yes / Yes
Video decoder (MPEG2 / MPEG 4)Yes / Yes
AC3 Surround sound decoderYes
AS 4599.1 complianceYes
AS 4933.1 complianceYes
LCN- Logical channel number and DTV Service name supportYes
Teletext  / Teletext signal interruption (TAB compliant) / 16 : 9 TLTXYes / Yes / Yes
SubtitlesYes
RF Signal strength indicatorYes
RF Signal quality indicatorYes
RF Bit error rate indicatorYes
EPG- Electronic programming guide, 7 days for all servicesYes
Audio description (vision impairment aid)Yes
Parental rating lockYes
Analogue TV reception
Colour-Sound systems in VHF bandPALSECAM, B/G, D/K, I
Colour-Sound systems in UHF bandPALSECAM, B/G, D/K, I
Stereo sound decoder {A2, Nicam, ….}No
Teletext  / Teletext signal interruption (TAB compliant) / 16 : 9  TLTXNo/ No/ No
SubtitlesYes
Image processing
Backlight controlNo
Light sensingNo
Dynamic backlight controlNo
Frame rate controlNo
Variable Refresh Rate (VRR)No
FreeSyncNo
Auto Low Latency Mode for VRRYes
Local dimming/ controllable zonesNo
Zoom function settingsAutomatic/ 16:9/ 4:3/ Panoramic/
Movie Zoom/ Direct
1:1 Pixel mappingNo
HDR - High Dynamic Range for luminance (DMP / Netflix / HDMI)No / No / No
HDR system (HDR10 / HDR10+ / Dolby Vision)Yes/ No / YES
HLG (Hybrid Log-Gamma) for HDRYES
HEVC (H.265) decoderYes
Dual image (PIP / POP)No/ No
Motion enhancement and compensation (MEMC)No
Input lagNO
Sound
Audio power output per channel8Watt
Number of speakers (Tweeter / Midrange / Woofer)2 /0 /0
Automatic volume level (AVL)Yes
Audio equalizerYes
Dolby DigitalYes
Audio enhancement -Type {SRS, BBE, SAP, DBX-TV….}DTS Virtual X
Lip-sync  adjustmentYes
Features
On/off timerYes
Power off if no signalYes
Sleep timerYes
Program lockYes
OSD transparency controlYes
User interfaceVIDAA U5
Software version OSD indicationYes
Legal requirements: Disclaimer / Acceptance of TermsYes / Yes
Favourite channels listYes
Electronic point of sales (E-POS)Yes
OTA- Over the air software updatesYes
Voice commandYes
Screen mirroring {Miracast, Anyview Cast, ...}Anyview Cast
Smartphone remote control application {Rremote Now, ...}Yes
Replaceable demo video for Store modeYes
Remote control via serial portNo
USB media player
Personal Video RecorderYes
Time ShiftYes
DTV Recording (EPG scheduling / start from Standby )Yes / Yes
DivX decoderNo
MPEG4 (H.264) / H.265 decoderYes / Yes
DMP- Digital media player content (Music / Video / Photos / Text)Yes / Yes / Yes / No
DMP Auto-playNo
DMP for UHD content via USBYes
DMP File allocation table (FAT / FAT32 / exFAT / NTFS)Yes / Yes  / No / Yes
PVR  File allocation table (FAT / FAT32 / exFAT / NTFS)Yes / Yes / No / Yes
Hotel lock
Protected Hotel lock submenu (Password / fixed code)No / Yes
Clone function for programs, sound and image settings.Yes
Sub-menu lock, including tuning lockYes
Keyboard lockYes
Maximum volume lockYes
Power on volumeYes
Power on, apply default sound/image settingsNo
Power on source selectionYes
Power on RF channel selectionYes
Power on mode (On / Standby / Last)Yes / Yes / Yes
Inputs access (Enable / Disable)Yes
Hardware
Processor / CoresMT9602EAATBA / 4
Dual TunerNo
Colour (Front bezel, rear, stand)Black / Black /  Black
Speakers mounted in enclosureYes
Mains  power switchNo
Swivel baseNo
Compact packagingYes
Supply  range [Voltage / Frequency ]100 ~ 240V,50Hz/60Hz
Standby consumption< 0.5W
Maximum time delay Power On to sound an image30sec

Installation
Stand area (Width / Depth)1031×291 mm
Wall mount dimensions (Horiz x  Vert)200×300 mm
Wall mount, screw threadM6/10mm
VESA complianceYes
Detachable power cordYes
Power cord length155cm

Accessories
Remote controller (Technology / Part number )IR /EN2AC30H(0011)
Battery (size / quantity)AAA / 2
User manual (Available online) / Quick setup guide (Print)1 / 1
Warranty [In User manual | In separate sheet]In separate sheet
Skype camera (Qty / Part number)-
3D glasses type  [Passive | Shutter] / Link [RF | IR | BT]-
3D glasses (Qty / Part number)-
Dimensions
Dimensions with stand (W x H x D)1232×773×291mm
Dimensions without stand (W x H x D)1232×711×74mm
Carton box dimensions (W x H x D)1364×136×864mm
Net weight (with stand / without stand)11.5Kg/11.3Kg
Gross weight17.5 Kg
Container load (20ft / 40ft / 40ft HC)142/288/432
Licensing and certification
EMC- Electromagnetic CompatibilityYes
CB- Electrical safetyYes
HDMIYes (Hisense internal test)
Dolby DigitalYes
MEPS- Test reportNo
ROHSNo
Electrical safety  conformity for AustraliaYes
Documentation
Panel specificationsYes
Initial specifications (input form)Yes
Confirmed product specificationsYes
List of DMP formats for audio and videoYes (QSG)
Documentation
CB report and certificateYes
EMC report and certificateYes
Power cord, plug and connector Australian safety approvalYes
Weight 17.5 kg
Dimensions 136.4 × 13.6 × 86.4 cm
